Sea Scout II
(Морской
Бойскаут 2)
Архив чертежей доступен по ссылке: | sea_scout_2.rar 304 kb |
файлы
формата DXF. и DES. (последние откроет COREL)

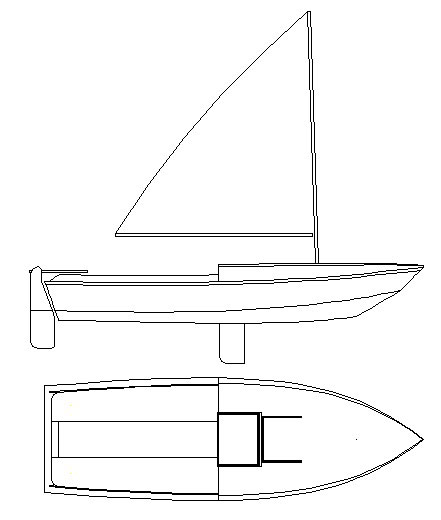

This is actually the same boat as above, but the cockpit arrangement and front deck layout are different. The cockpit is made with a bench each side running from the cabin to the aft. The front deck is raised to get more space in the cabin. The rig is made in a simpler version.



Main dimensions:
L.O.A. = 5,310 m / 17'5"
B = 1,726 m / 5'8"
T = 0,206/0,622 m / 8"/2'
Disp. = 800 kg / 1764 lbs.


The Sea Scout can be build from one sheet of 12 mm, nine sheets of 9 mm and eight sheets of 6 mm plywood. It is a building project that will take a good amount of time to build, but I think the hull should be possible to build in 2-3 weeks. The weight of the boat will be approximately 250-270 kg.
